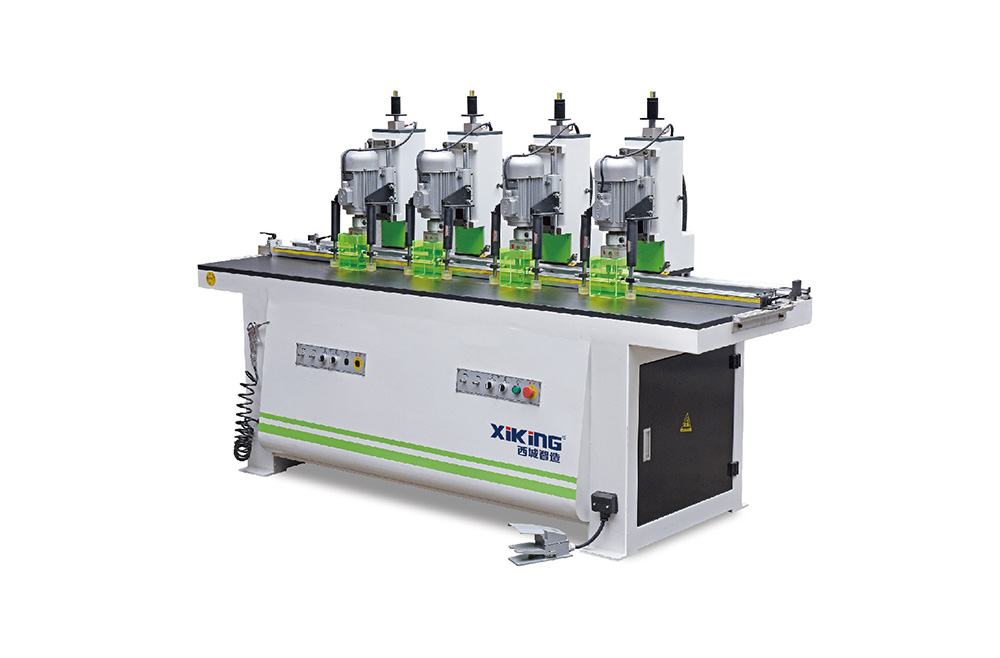

产品中心MZB73034铰链多轴木工钻床
参数配置
|
最大钻孔直径 |
Maximum diameter of holes |
35mm |
|
钻孔深度范围 |
Depth of drilled holes |
0-65mm |
|
钻轴数 |
The total number of spindles |
12PCS |
|
最大加工工件尺寸 |
Maximum diameter of pieces to be drilled |
2500x650x80mm |
|
钻轴转速 |
Rotation speed of spindle |
2840r/min |
|
电机总功率 |
Total power of motor |
1.1kwx4 |
|
要求电源电压 |
Suitable voltage |
~380V |
|
适应气压 |
Pressure of compressed air |
0.5-0.6Mpa |
|
每分钟生产10块的用气量（约） |
Gas consumption drilling ten panels per minute approximately |
17L/min |
|
外型尺寸 |
Overall size |
2680x890x1670mm |
|
整机重量 |
Weight of the whole machine |
990kg |
|
垂直钻两排最大距离 |
Max.Distance of the two vertical head |
2200mm |
|
垂直钻两排最小距离 |
Min.Distance of the two vertical head |
280mm |
